Kit includes:
Lift Frame
24V DC Motor
Full length bunks
24V Solar Panel Kit
Wireless Remote
Deep Cycle Marine Batteries
30' Canopy - Standard "AirMax" Kit, your choice of color.

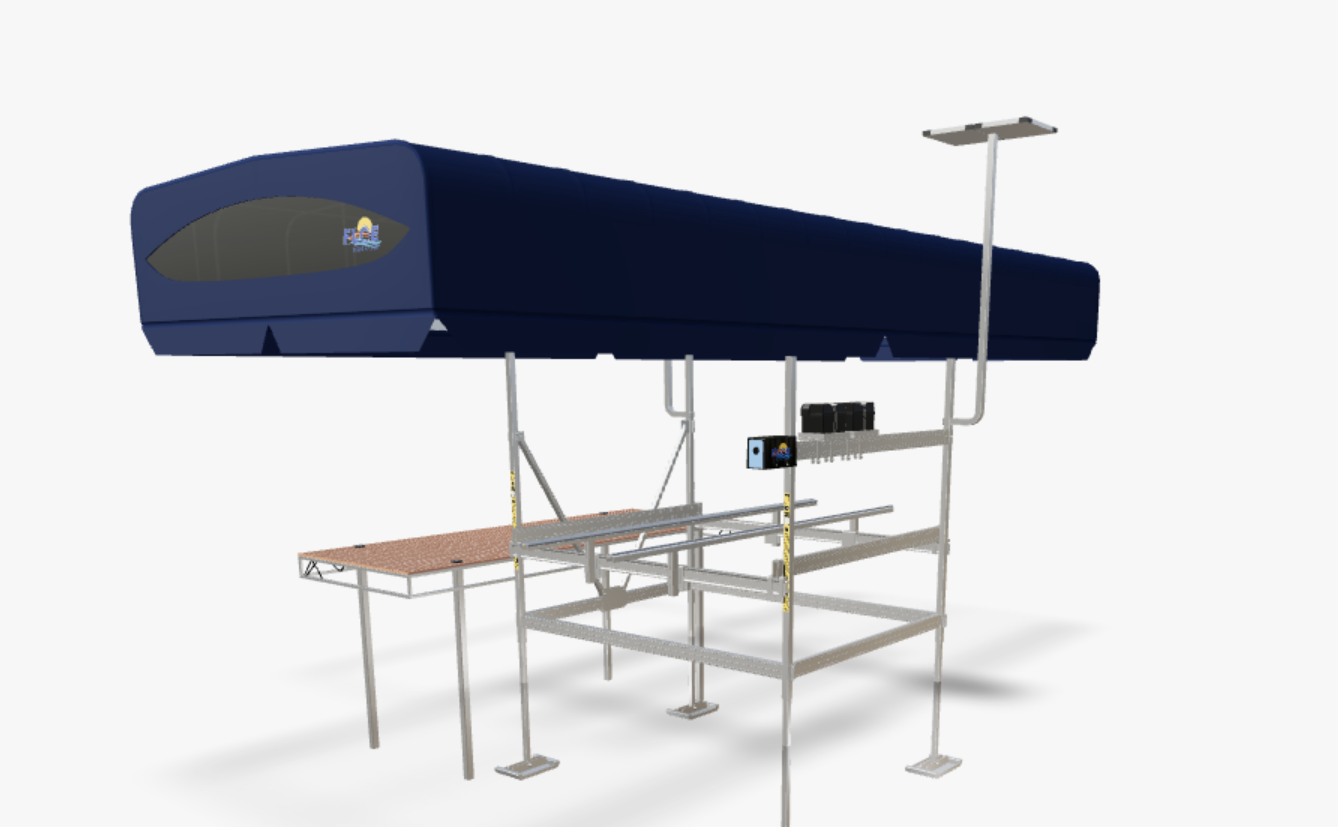

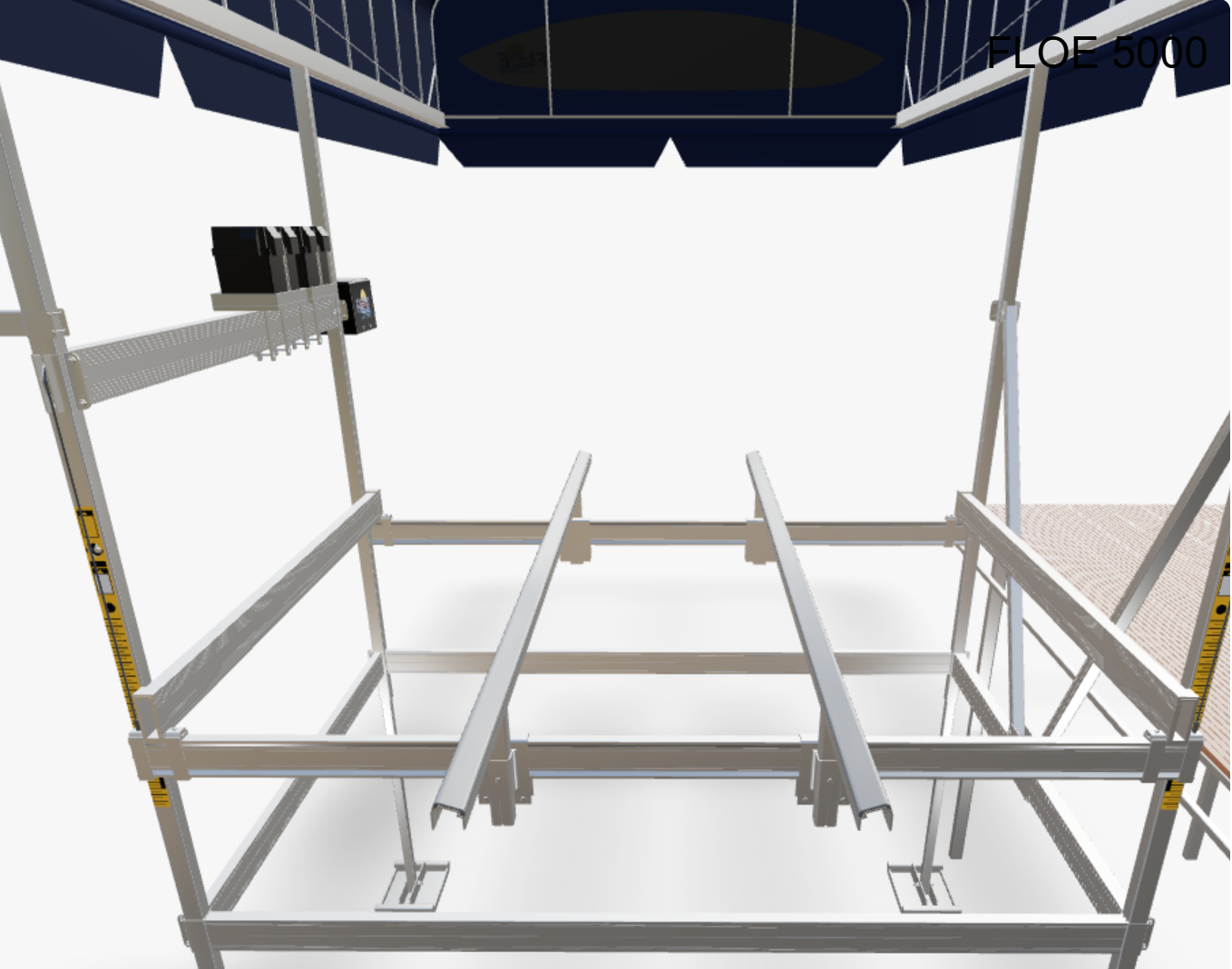

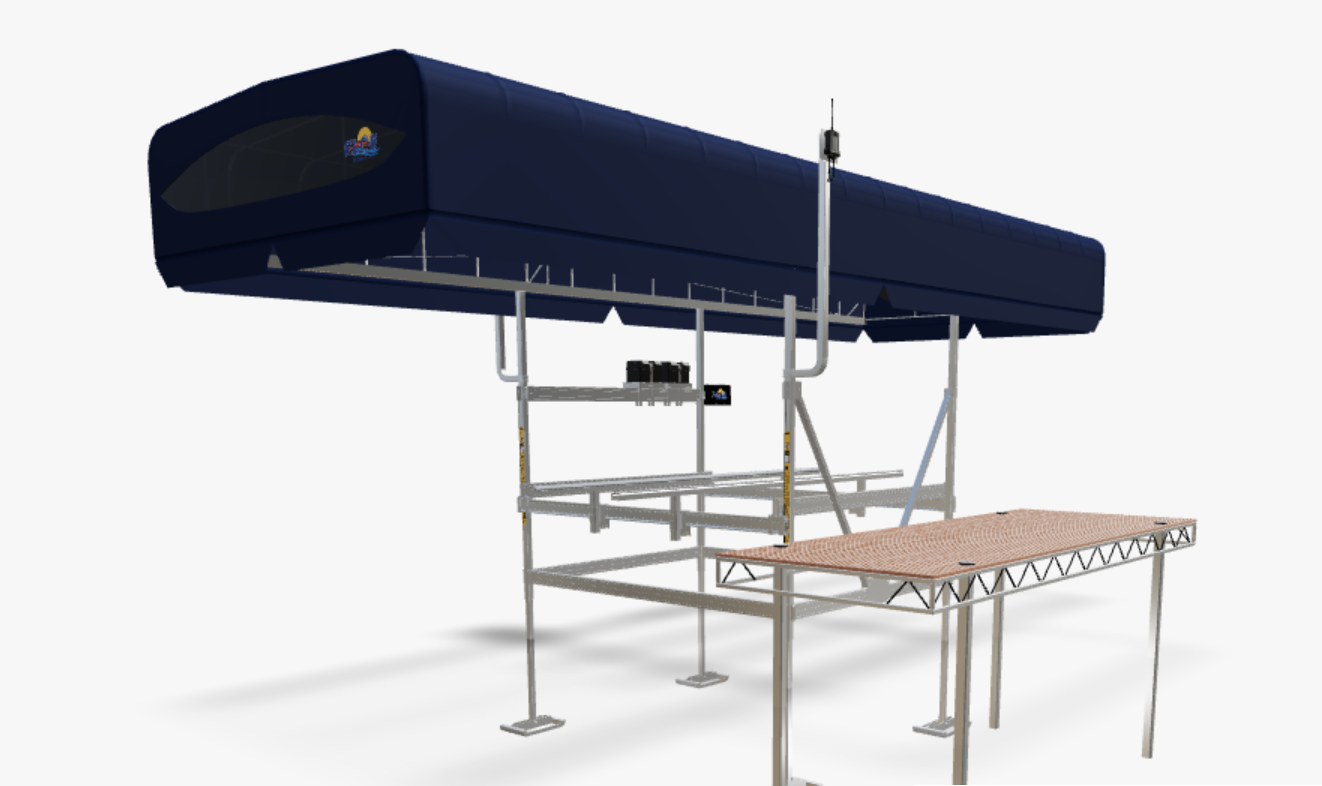

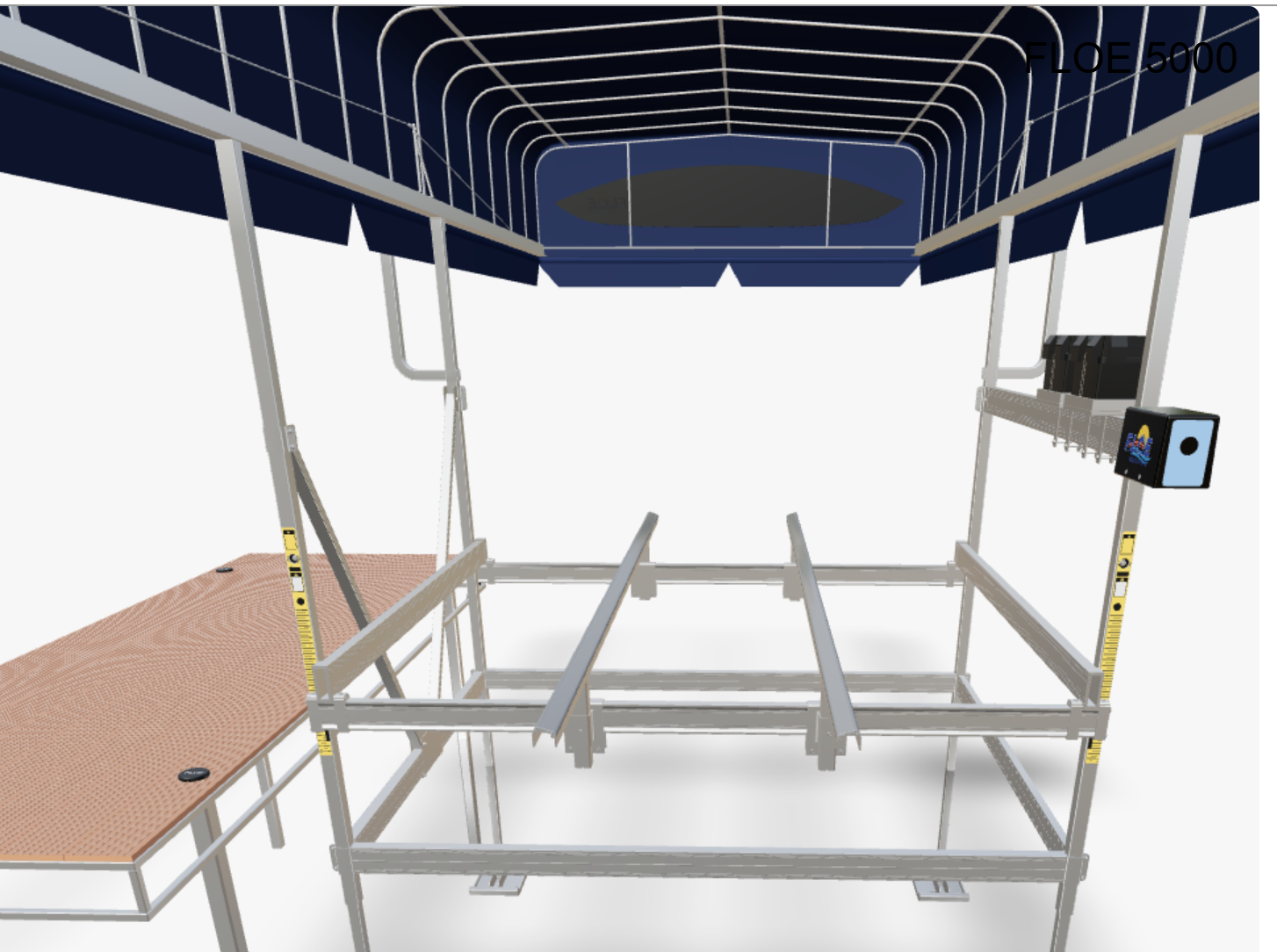

FLOE Vertical Screw Drive (VSD) Boat Lift
Model: VSD 5000
Bed Travel – 52″
Inside Width – 119″
Outside Width – 135″
Outside Length – 162″
Leg Travel – 30″
Frame Weight – 632lbs
Weight Capacity - 5,000 lbs


* Photos may include/illustrate options not included in pricing of combo kit *

VERTICAL SCREW DRIVE BOAT LIFT TECHNOLOGY – A DEFINITIVE LEAP FORWARD
FLOE’s VSD technology lowers and raises your boat or pontoon in about one-half the time of most other powered boat lifts. It’s the most energy-efficient vertical boat lift in the world. The drive train is whisper quiet with no clicking winch gears or pinging cable.

The low-maintenance electric motor spins the screw so the ball nut travels back and forth as it pulls the lifting cable. The industrial strength ball-screw is rated for 20,000 cycles at 10,000 lbs. No need to ever replace a worn winch cable with a VSD boat lift!

Quickly raise and lower your boat with the push of a button using FLOE’s Wired Remote. The 30-foot cord makes it convenient to position anywhere on the boat lift and has a key switch so you can turn off your lift when you are not at the lake.

Add an optional Wireless Remote to operate your boat lift from a 300-yard radius. Other options include a Flood Light system that plugs into the wireless system and a Solar Charging Panel so you’ll never have dead batteries.

EASY-LEVEL™ LEVELING SYSTEM
All FLOE vertical boat lifts come standard with the patented Easy-Level™ system. There’s no need to get wet when adjusting the lift to the perfect height and a cordless drill is all that’s needed! Simply turn the nut inside the leg to adjust the lift up or down.

Other great benefits of the FLOE Easy-Level™ system are:

Infinite adjustment
No pins to align
One-person job
Easy seasonal adjustment as water levels fluctuate

Canopies;

FLOE boat lift canopies offer greater boat protection than competitors’s lifts with their extra deep fabric and framework. Your canopy will not blow in or up and will keep your boat fully covered. The upscale style with tailor-fit fabric has a refined look and is held taut with the exclusive Quick-Clip™ fabric attachment system.

FLOE uses a premium-grade solution dyed fabric that is water resistant, has a more luxurious look and weighs 50% less than comparable vinyl fabrics for easy removal and installation. The SDP fabric is urethane coated and UV protected. In addition to the durable construction, the full-length seams are heat sealed to minimize leaks.

FLOE offers a variety of canopy lengths and widths to accommodate different watercraft sizes. The canopy frames adjust vertically and horizontally so your boat weight is perfectly balanced on the lift and your boat is covered.

QUICK CLIP™ AND ELASTIC TENSION-BELT™ SYSTEMS

All of FLOE’s canopy systems incorporate the FLOE’s exclusive Quick-Clip™ System with ergonomic finger grips allowing you to install and remove your canopy fabric in half the time of other systems. The exclusive Elastic Tension-Belt™ design provides constant tension on the fabric for a tailored look and tight fit.
